ARMORED MINI FOR CABLE

indoor fiber Description

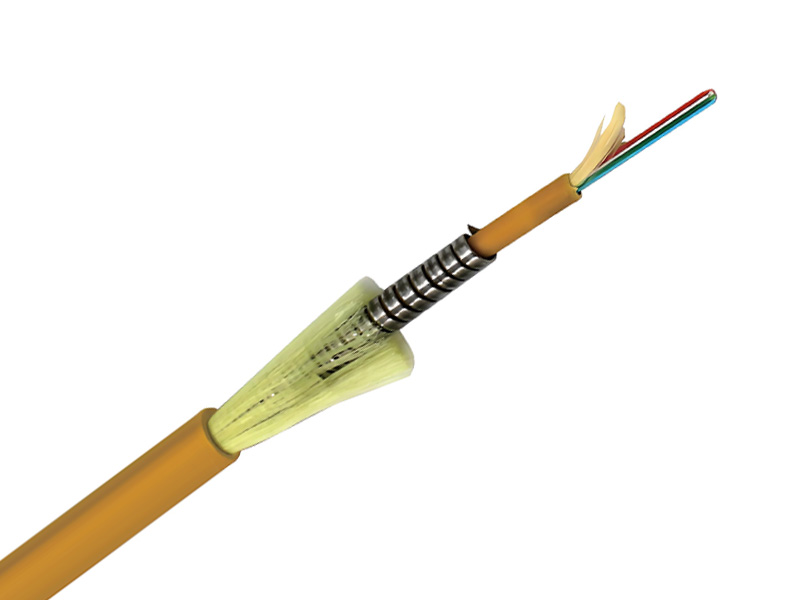

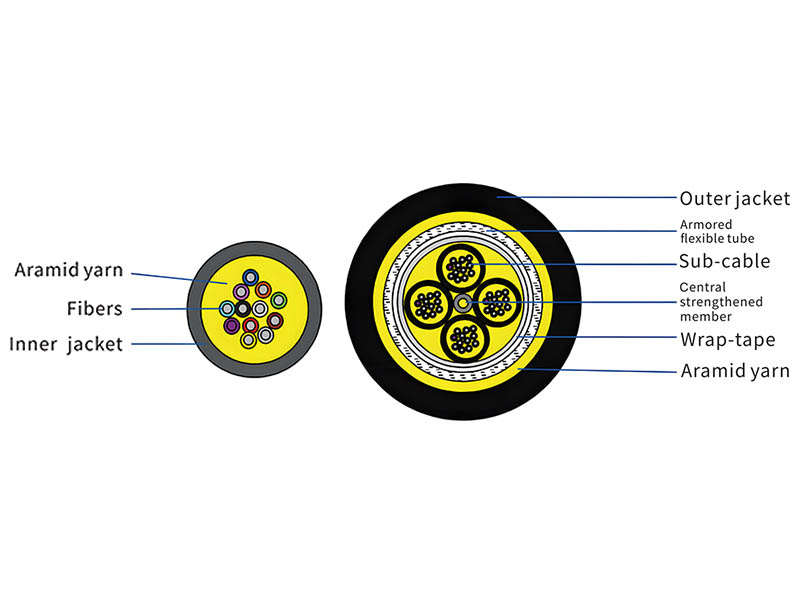

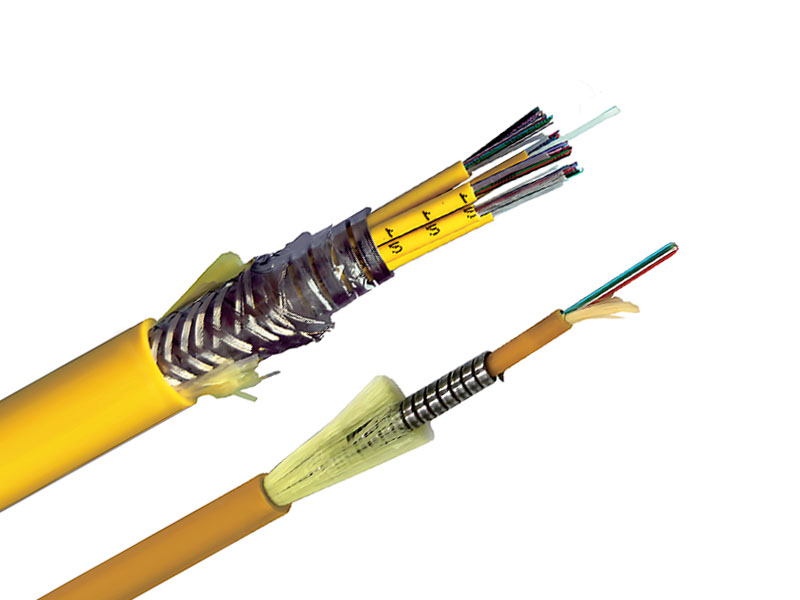

Armored mini fiber optic cables are made of several stranded sub cable which is made of with 4~12 fibers，aramid yarn and LSZH iacket，This kind of cable has very good mechanical characteristics，small outside diameter. high strength，saving space. easy wiring and follow-up processing，is a good transmission medium in the field of communication，The products are widely used in broadcasting and television system，building intelligent control，power control system, traffic communication system and local area network.



indoor fiber Application

1、Process to multi-cores armored patch cord.
2、Cabling on wall，ceil，tube，case，etc；



indoor fiber Features

1、Protected by flexible armored SUS tube，which have very good mechanical performances.
2、Small diameter，save space and easy to deploy；
3、Outer jacket complies with UL，ROHS；
4、12 cores or 24 cores is option for the sub cable in order to complied with MTP or MPO；

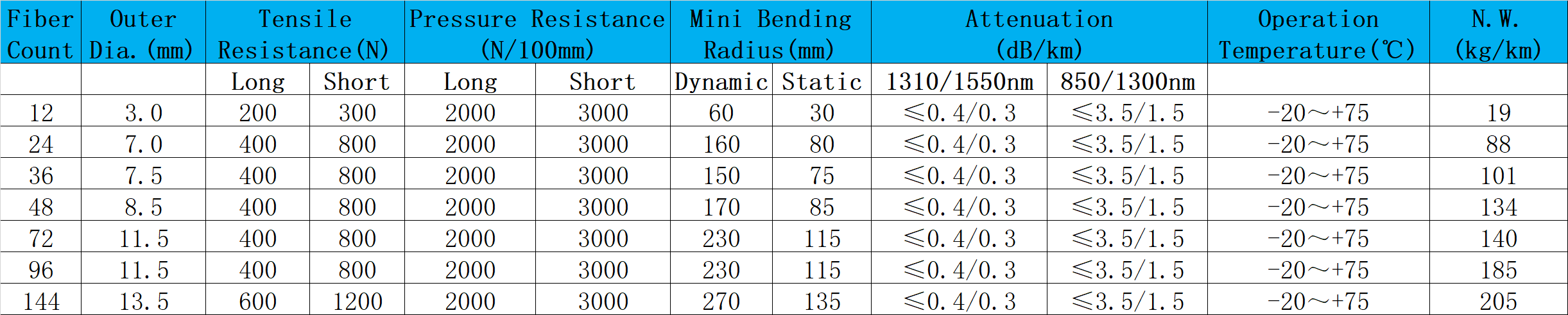

indoor fiber specifications:
