ARMORED DISTRIBUTION OF CABLE

indoor fiber Description

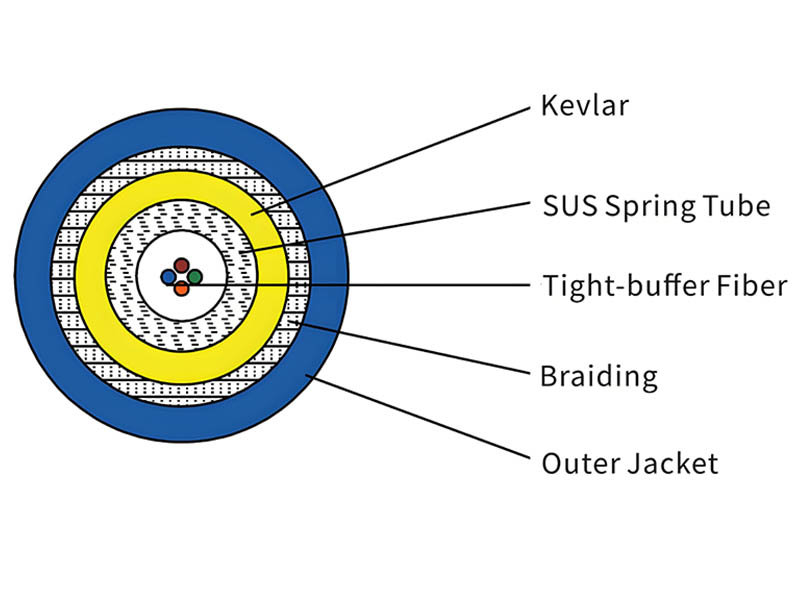

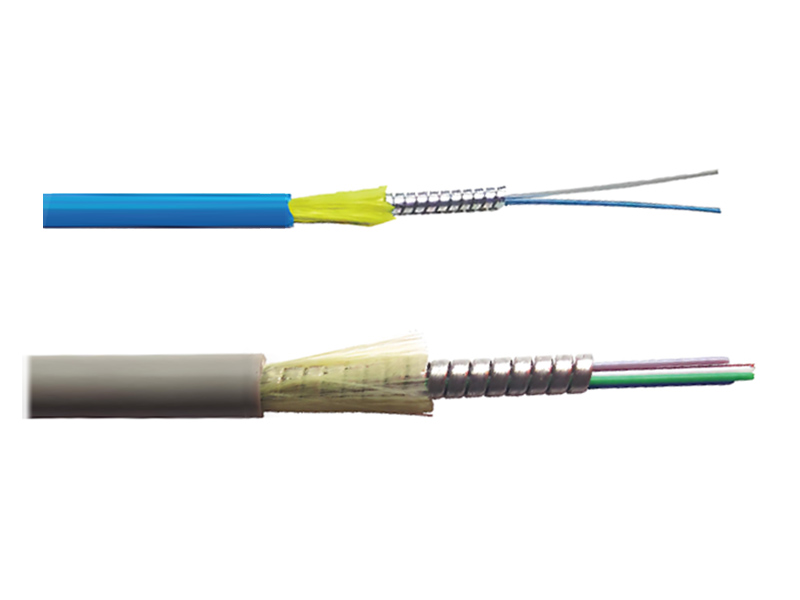

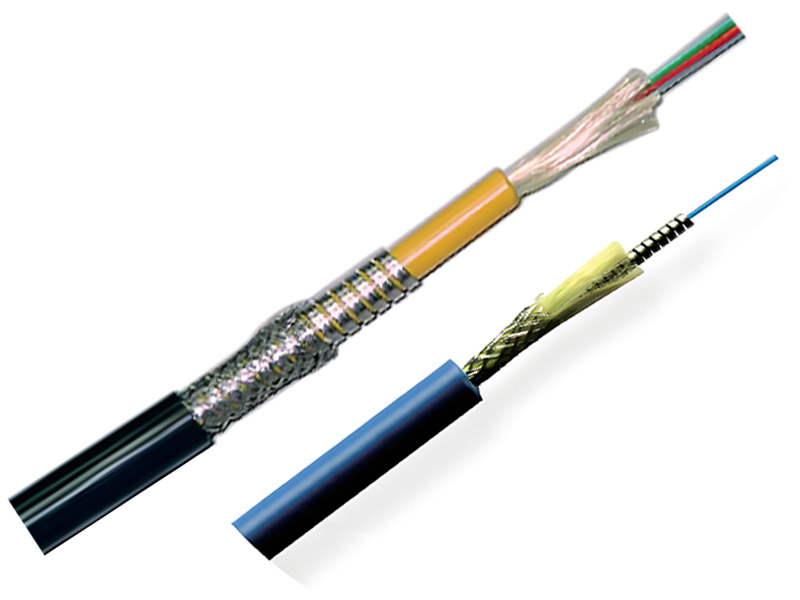

Armored distribution OF cable is composed by tight buffer fibers，sus flexible tube, Kevlar strengthening member，Sus braiding, and outer jacket.With excellent mechanical performance oftensile strength and crush resistance，the cable is the ideal choice of cabling，processing patch cord，LAN and other communication applications.



indoor fiber Application

1、Process to armored patch cord，pigtail；
2、Cabling on wall, ceil，tube，case，etc.；
3、Distribution OfLAN，WAN；



indoor fiber Features

1、Mini diameter SuS spring tube armored and braiding reinforced ensure excellentcrush resistance to 3000N；
2、Outerjacket material can be PVC，LSZH，PE，TPU.
3、Unit tube with multi-cores, fiber countis up to 24, saves space;

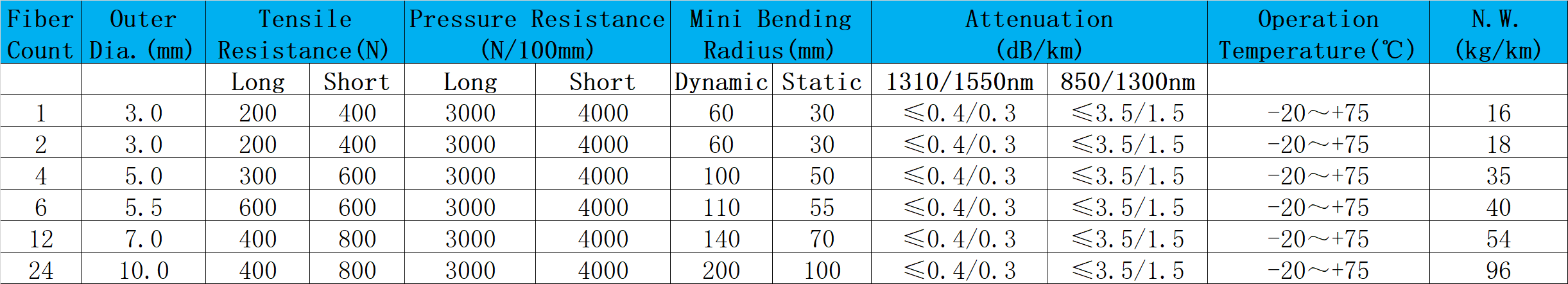

indoor fiber specifications:

1、About datasheet is base on the tight buffer whose diameter is 0.6mm，For 0.9mm diameter please contact us for datasheet
2、Outerjacket material could be PVC，LSZH，PE，TPU，etc.



Standard length：2000m, other lengths are also available

Note: The structure’s size and specifications can be desianed according to customer requirements
